How To Clean A ATV Carburetor? 6 Easy Steps To Complete It

While carburetors no longer exist in modern-day vehicles, ATVs, smaller-sized motorcycles, and also specific tools like lawn mowers are still used them.

Over time, carburetors can gather a great deal of dirt, dirt, debris, crud, as well as grease. This can trigger blockages or obstructions that avoid the needed combo of gas and air from reaching the engine, which, consequently, stops the vehicle.

Less severe symptoms are slow-moving performance and also velocity, decreased mileage, in addition to overheating. If you drive with diesel, you might likewise experience black smoke from the exhaust pipe.

Cleaning the carburetor can normally get it working effectively once more. When you open it up for cleaning, it's also a possibility to replace any worn-out components such as gaskets and O-rings.

In this article, we explain exactly how to clean a ATV carburetor.

6 Steps To Clean Your ATV Carburetor

Tools You Need

Get these tools before you get started.

• Phillips screwdriver and flat screwdriver
• Needle nose pliers
• Wire brush
• Wrenches or socket set
• Carb and choke cleaner
• Gasket set or carb rebuild kit
• Safety glasses and gloves

1. Locate And Remove The Carburetor

The first step is locating the carburetor and removing it from the ATV for disassembly as well as cleaning.

Your solution handbook must indicate where the carburetor lies. In the majority of ATVs, you need to raise the seat and get rid of the air box to access the carburetor.

Before you go any additionally, you need to close down the fuel supply to the carburetor. Adhere to the fuel line from the carbohydrate up until you situate the fuel valve shutoff. Turn it to the off setting.

Now you can remove the carburetor. Loosen up the tube clamp holding the carbohydrate in place with a screwdriver after that wiggle and also draw it out.

The carburetor is still connected to the ATV with the throttle cable. To separate it, loosen the leading cap. This will eliminate the throttle cable and also slide. Currently, the carb is completely totally free and you can move it to a suitable work surface.

Seek a surface with lots of light and also where you can securely place tiny components without losing them.

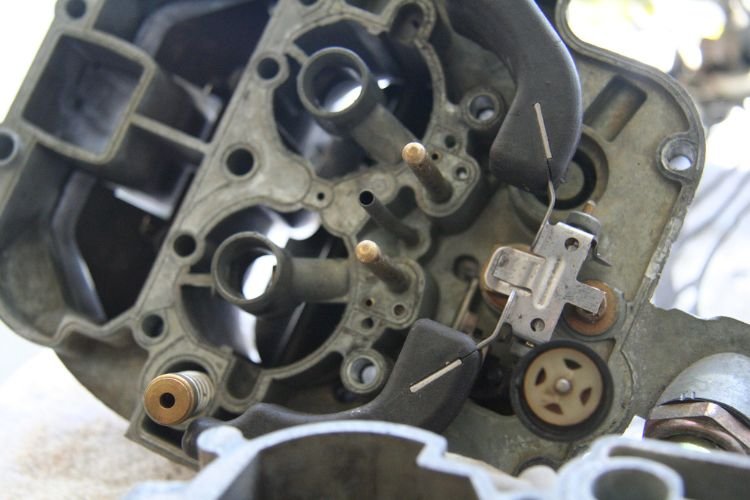

2. Remove The Float

The float is the bottom part of the carburetor and is the first thing uncoupled when cleaning the carburetor. To remove the float bowl, loosen the 4 screws under the carburetor. Get rid of these screws with care because they remove really quickly. The float bowl can then be pulled out of the carbs. If you are not replacing the gasket be sure to not tear it. Cleaning the components will be dealt with later on so do not start cleaning yet.

Remove the float pin by pulling it out with a pair of needle-nose pliers. After the pin is eliminated, the float can be gotten rid of. In some carburetors, the needle will be hanging on the float as well as will bring out it.

3. Remove The Jets

This step will differ from carburetor to carburetor, yet the jets will certainly need to be gotten rid of. Some carburetors have some splash plates that needed to be removed, not all carburetors will certainly have these. Jets are screws that have an opening with the center of them which the fuel streams through to blend with air. Home plates need to be removed to get to the jets. The primary jet is short as well as fat; will have a hex head or a flat screwdriver head. The pilot jet is long and slim which will take a level head screwdriver to get rid of.

On this carburetor, the float needle is held in by a fuel splash plate. Remove this plate so the float needle can be taken out to be cleaned up.

4. Remove Outer Components

The last step prior to cleansing the carburetor is removing the last parts from the outside. The air screw as well as the idle screw can be eliminated with a flat head screwdriver. They are located on the sides of the carburetor. The idle screw is the larger screw that changes the idle when the engine is idling.

Eliminate the air screw. The air screw is the smaller-sized screw that readjusts the airflow via the carb when the engine is running.

If the choke can be removed from the carburetor, remove it. Transform the top with a wrench and the choke like slide out.

5. Clean Components

Before cleaning the carb and parts, remove all gaskets and o-rings. The simplest way to cleanse the carburetor as well as the parts is to saturate them in a gallon of carb and parts cleaner, nonetheless the can is pretty costly for simply one use. Adhere to the guidelines on the can for cleansing. Parts can also be cleaned by spraying carb and also choke cleaner.

Be sure so use safety glasses, gloves are advised, for cleaning. Components must be scrubbed with a cable brush and then splashed with carb and also choke cleaner. Splash the cleaner into the holes that the jets, air and idle screws, float needle, and choke came from. When cleansing the jets, make certain to spray cleaner into the holes. To make sure the jets are tidy, look through them right into the light to see if the hole is cleaned. If jets are not entirely tidy, blowing compressed air via the hole will certainly get rid of the remaining particles.

Make certain all particles are eliminated from the carburetor. Dry the carburetor and all components, the simplest way is with compressed air. Blow pressed air into all holes, as well as blow off all parts of the carburetor. After every little thing is dry, mount the new o-rings and also gaskets back into carb if you have them, otherwise, re-use the old one.

6. Reinstall What You Disassemble

Reinstall the jets with a screwdriver. If necessary, replace the carb bowl gasket. Screw the bowl back onto the carb. Reinstall the carb on the ATV, reconnect all lines previously removed, and test for proper operation. If you find any leaks around the mating surface of the bowl to the carb, you may need a new gasket or some silicone sealant to seal the two together.

Frequently Asked Questions

How do I clean a dirty carburetor without taking it apart?

There are two ways to clean a dirty carburetor without taking it apart. One is to use a carburetor cleaner spray. Another is to soak the carburetor in the carburetor cleaner for several hrs.

What are the signs of a dirty carburetor?

A dirty carburetor will certainly create an engine to run rough, has poor fuel economy, and produce emissions that are not up to par.

What are the causes of dirty carburetors?

There are a few typical sources of a dirty carburetor. One is if the fuel injectors are not splashing the correct amount of fuel at all times, which can cause the engine to run badly as well as create more carbon buildup. Another typical cause is if the air filter is not keeping the engine clean, which will enable dust and also dust to build up on the engine as well as the carburetor.

Can you spray carb cleaner while the engine is running?

It is possible to spray carbohydrate cleaner while the engine is running, but this is not recommended as it can damage the engine.

Can you use vinegar as a carburetor cleaner?

Use vinegar as a carburetor cleaner fluid as opposed to spending on a carburetor cleaning fluid. If the cleaning is done on a regular basis as normal upkeep of the car, vinegar does a better task. It will certainly still benefit from periodic cleaning yet needs more effort with a cord scrub brush.

Can I use brake liquid to cleanse my carburetor?

If you can not locate any kind of carb cleaner, brake cleaner will certainly work to cleanse your carburetor, however starting fluid works much better.

Can I use wd40 to clean the carburetor?

WD40 can be used to clean carburetors, but it is not advised since it can harm the parts.

Why is my ATV carburetor leaking gas?

Normally, the problem of your ATV leaking gas into the intake manifold is caused by a carbureted engine. When this happens, it means the float is stuck or the nozzles are clogged. The solution to this problem is to clean the carburetor, fuel lines, and matching fuel system components.

Can I use brake cleaner instead of a carb cleanser?

If you are asking what can I make use of rather than carburetor cleaner, Brake cleaner is one more choice as opposed to carburetor cleaner. It is safe to make use of on the carburetor, and also is figured to break down oil and also grimes equally as carburetor cleaners are.
